Diomidis D. Spinellis
Department of Information and Communication Systems
University of the Aegean
GR-83200 Karlovasi, Greece
dspin@aegean.gr
The ubiquity of Windows-based desktop environments has not been matched by a corresponding emergence of tools supporting the Unix tool composition paradigm. Outwit is a suite of tools based on the Unix tool design principles allowing the processing of Windows application data with sophisticated data manipulation pipelines. The outwit tools offer access to the Windows clipboard, the registry, relational databases, document properties, and shell links. We demonstrate a number of applications of the outwit tools used in conjuction with existing Unix commands, and discuss future directions of our work.
``GUIs normally make it simple to accomplish simple actions and impossible to accomplish complex actions.'' - Doug Gwyn
The increasing sophistication of Windows-based compilers, libraries, and operating system functionality in conjunction with the availability of open-source Unix tool implementations have led to a number of ports of a large portion of the Unix toolchest to the Windows environment. Although such ports provide a rich set of tools, they often fail to address tool integration with the rest of the environment.
Over the last few years we have nurtured and sharpened outwit: a small suite of tools, based on the Unix programming philosophy, yet tightly integrated with the Windows environment. The tools are designed to be seamlessly used with traditional parts of the Unix toolchest as parts of shell-based pipelines. We use these tools on an everyday basis both casually to enhance our system's usability, and as building blocks for more sophisticated applications.
The aim of this paper is to demonstrate that GUI-based platforms, and Windows in particular, are not incompatible with the Unix tool-based approach to prototyping, reuse, shell programming, and implementation based on incremental refinement. In the following sections we will outline the design principles of our approach, describe the tools in our collection, comment on their implementation effort, illustrate some typical uses, and discuss our work in the context of other efforts and future directions.
Some applications, to overcome these problems, provide an object model and a script-based programming interface. Such interfaces, however, still carry with them the weight of the application, do not provide a clean way to combine different applications, and, in our experience, are typically fragile, and difficult to use in a non-interactive setting.
An alternative approach to productivity in an interactive environment was popularized by the Unix tool-based and shell programming approach [KP84]. Unix tools can be easily combined to form powerful data manipulation sequences. Where such sequences are to be reused or repeated Unix shell-based programming can be used to package and automate them. The advantages of the Unix-based approach to interaction prompted us to examine the possibility of offering these benefits within the context of the ubiquitous Windows environment. A large part of the Unix toolchest has already been ported to Windows as part of open-source and commercial efforts. However, the tools provided typically function isolated from the GUI environment within a text-based command shell. Data interchange with the GUI applications is often limited to the use of textual files which are in any case rare as most GUI applications use undocumented binary file formats. We therefore focused our attention on providing mechanisms for integrating the capabilities provided by the Unix toolchest with the data sources and sinks available in typical GUI applications.
Out tools were designed along the principles used by most Unix-based tools:
It is interesting and instructive to contrast tools based on these principles against the behemoths that populate GUI-based office productivity suites.
We aimed our tools to areas where data amenable to Unix-style pipeline processing could be extracted from difficult-to-access Windows sources. All the tools are console-based native Win32 applications using their standard input and output as the data source and sink. They can be used both from the standard Windows shells (command and cmd32) and from Unix-derived shells like bash and ksh [Kor94].
Due to the complexity of the Windows API the external tool simplicity is often inversely proportional to the code required to implement the tool. We found however, that the effort required to implement such tools was often amortized by less mouse clicks and other repetitive GUI operations within a matter of days.
Our winclip tool provides shell-based clipboard access. When run with a -c (copy) argument it will copy the data it reads from its standard input to the Windows clipboard:
Capitalizing on the strengths of the ODBC interface we wrote the odbc tool which prints the results of an SQL SELECT command run on any database for which an appropriate data source has been defined:
mail `odbc uDB 'select email from users'`Two arguments must always be specified as part of the tool invocation: the name of the data source driver (the database communication configured in the local machine), and a select statement. In addition, one can specify the record and field separator that will delimit the output results, and a user identifier and an authorization string pair that will be used for logging into the database. All data types are currently output as text according to the default driver-supplied data conversions.
In order to overcome these difficulties we designed and implemented winreg, a text-based tool that can be used to read and modify registry data. Each text line represents a single key. Three fields, separated by a user configurable field separator, contain the key name, its type, and its value. The tool can be invoked with the name of a part of the registry as its argument to print the textual representation of the registry tree from that point downwards on its standard output, or it can read the textual representation of some registry keys from its standard input and enter them into the registry. In addition, one can specify whether the output of winreg shall include the key names, types, or values. As an example:
winreg -nt HKEY_LOCAL_MACHINE\System\ \CurrentControlSet\Control\ComputerName\ \ComputerName
will display a machine's name.
Document properties are typically accessed from within applications, or through a file context menu of the Windows GUI shell.
Our docprop tool provides Unix shell programmable access to these properties. The program takes as arguments an optional output format specification string and a list of filenames. The format specification string can contain arbitrary text, system or user-defined property names enclosed in braces, and the usual C language backslash escapes. When executed the program will iterate over the filename list and, for each file, will output the format string replacing the property names enclosed in braces with their respective values. In addition, docprop provides an internally synthesized property name called Filename to allow the printing of each filename. The following example will print the document name and author name of all Word documents in a directory:
docprop -f '{Filename}\t{Author}\n' *.doc
Despite our philosophical objections to the shell link concept we found the need for a tool to resolve such links at a textual level. We thus discovered that the operation that is trivially performed on a Unix system by the readlink(2) system call needed 60 lines of C code and 11 calls to the Win32 API in the Windows environment. Our resultant readlink tool accepts as its single argument the name of a shell link and outputs the name of the link's target. Dynamic resolving of targets on the move works as advertised:
$ readlink s.lnk
C:\src\win32lib\port.c
$ move port.c foo
C:\src\win32lib\port.c =>
C:\src\win32lib\foo\port.c [OK]
$ readlink s.lnk
C:\src\win32lib\foo\port.c
At 1440 lines of code the total implementation effort for the outwit suite is embarrassingly modest given the capabilities it provides. The code size of each tool is detailed in Table 1. Most tools are at the same time more versatile, powerful, and smaller than the corresponding GUI-based toy examples demonstrating similar capabilities. With increasing use of the outwit suite we expect to add more tools and enhance the capabilities of the existing ones. However, given that the power of our approach relies on the synergies of tool composition and not on the features of a single tool, we expect both the number of tools and the size of each tool to remain fairly small.
| Tool name | L.O.C. |
| readlink | 141 |
| odbc | 151 |
| docprop | 408 |
| winreg | 545 |
| winclip | 195 |
| Total | 1440 |
The greatest hurdle in the development of each tool was the Win32 API. Many API functions are incompletely or inconsistently documented [Spi98] while the sheer size of the API is formidable: it currently comprises 149 different data types, 2193 basic functions, and 1499 error codes. We were also troubled by subtle incompatibilities between operating system versions that could create portability problems, the lack of documentation on the possible function error return values, and the overly complicated interface provided by some functions. We were however pleasantly surprised by the quality of the ODBC interface which stands apart in documentation quality from the rest of the Windows API.
Many API functions are based on special handles which must be carefully allocated and deallocated. We believe that this must be a source of reliability problems in the large GUI-based applications. In contrast, the outwit tools will simply process data and exit, thereby sidestepping various resource leak problems.
In order to maximize the applicability of the outwit tools, all of them are written as native Win32 applications and do not rely on an intermediate Unix porting layer. They can thus be used together with any collection of Unix tools that allows the execution of Win32 programs. All tools can be used under Windows 95, 98, 2000, and NT.
winreg HKEY_CURRENT_USER | sed -n 's/C:\\home/D:\\home/gp' | winreg
Winreg is also often used to extract system information from the registry. The name of the currently logged-in user can be stored in a shell variable using the following construct:
LOGIN=`winreg \
HKEY_LOCAL_MACHINE\Network\Logon |
awk '/username/{print $3}' `
In addition, network settings can be obtained from the registry keys
HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\VxD\MSTCP
and
HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\VxD\DHCP.
One other application of winreg involves accessing system performance information similar in nature to the data provided by the Unix vmstat command. The following command sequence will save system performance information (CPU load, data I/O, cache and memory system data in the form of raw counter values) to a file for later statistical processing. This functionality is not provided by the system-supplied performance monitors and would otherwise require the implementation of a separate program:
while : do winreg -dt HKEY_DYN_DATA\PerfStats\StatData sleep 5 done >/var/log/perfdata
winclip -p | tr '[a-z][A-Z]' '[n-z][a-m][N-Z][A-M]' | winclip -c(This ``encryption'' method is sometimes used in certain newsgroups to discourage casual reading of joke punch lines or offensive jokes.)
By using the point and click metaphor, GUI interfaces to the filesystem such as the Windows Explorer often provide a swifter method for selecting files than typing file names at the command prompt. Winclip allows the integration of the two interaction approaches. The following sequence will open up a console window with its current directory set to the directory copied to the clipboard from the Windows Explorer:
\bin\echo -n "start command /k cd " >$$.bat winclip -p >>$$.bat start $$.batThe Windows Explorer is also our method of choice for visually selecting groups of files. Having selected a group of files they can then be copied to the clipboard (as drop targets) and processed using text-based commands:
sed '/^$/d' `winclip -p` | wc -l
Winclip, in conjunction with a pipeline-based image manipulation package such as netpbm [P+93], can also be used to automate the processing of graphics images that have been copied to the clipboard. When processing a large number of images this method of work can save the user from the tiresome repetitive operations that would have to be performed on a GUI-based graphics manipulation package. Alternatively, winclip can be used to add new facilities to a GUI package by processing the image in the clipboard. As an example, the following sequence of commands will crop, scale, quantize, and convert the clipboard bitmap into a GIF file:
winclip -p | pnmcrop | pnmscale 0.5 | ppmquant 256 | ppmtogif >file.gif
(
odbc ACorpDB "select FullName, Phone from
Employees"
odbc BCorpDB "select surname, name,
phonenum from personnel"
) | sort | pr
Odbc is also useful when integrating Unix and Windows-based systems.
A password file can be extracted from a relational database and copied
to a Unix file using the following command:
odbc -F: userDB "select * from passwd" \
>/nfs/host/passwd
(The security implications of such functionality are left as an exercise
to the reader.)
Finally, given the existence of text-based graph creation tools like GNUplot combining odbc, Unix text manipulation tools, and GNUplot can be an efficient way to automate the generation of graphs from databases.
case $FNAME in
*.lnk) FNAME=`readlink $1` ;;
esac
Docprop can be used to create and consolidate indices of document titles
and authors.
Docprop can also be used to gather statistical data from document
files.
The following sequence will print a list of application names that
were used to edit the most recently used files, sorted in order of
application popularity.
for f in /windows/recent/*.lnk
do
readlink $f
done |
xargs docprop -f '{Application}\n' |
sort |
uniq -c |
sort -n

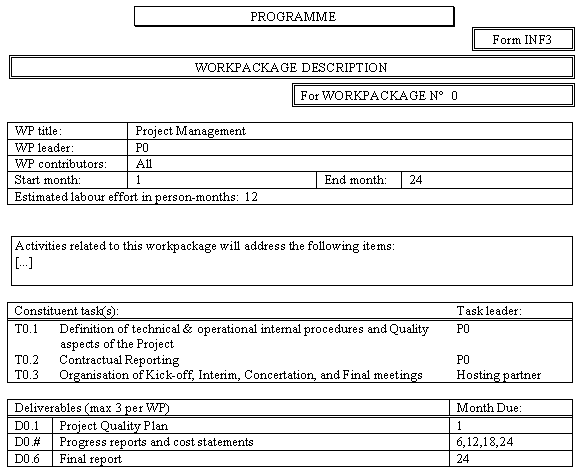

In addition to a description for each workpackage, the funding body required the provision of a list of deliverables ordered by delivery month, and a GANTT chart for the whole project. We also wanted a current list of tasks in order to distribute work between the project participants. All these items are different representations of the data included in the workpackage descriptions. The combined use of winclip and some Unix tools allowed us to automate the creation of these items. All sequences we used involved the massaging of the clipboard data (which contained the workpackage descriptions) using awk into a format appropriate to be pasted back into another table or application.
The following script was used to create a list of tasks:
winclip -p |
awk "-F\t" '/^T[0-9]/{print $1 " " $2}' |
winclip -c
The script below was used to create a list of deliverables to be pasted back into a summary form in the original application:
winclip -p |
awk "-F\t" '/^D[0-9]/ {
print $3 "\t" substr($1, 2, 1) \
"\t" $1 "\t" $2
}' |
winclip -c

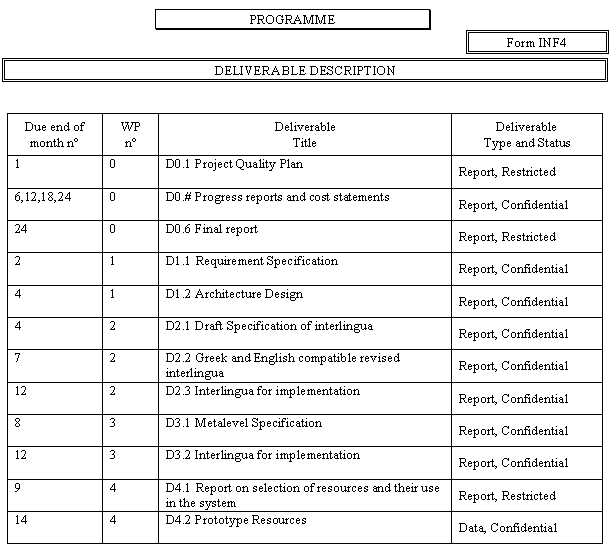

The corresponding table is depicted in Figure 2.
Finally, the following script was used to create a workpackage list together with start dates and durations in a format suitable for pasting into Microsoft Project:
winclip -p | awk '
BEGIN {FS = "\t" }
/For WORK/ {split($0, a, "\t")}
/^WP title/ {WP = $2}
/^Start month/ {
print "WP" a[4] "\t" \
WP "\t" \
($4 - $2 + 1) * 31 "ed\t" \
"1/" ($2 - 1) % 12 + 1 "/" 2000 +
int(($2 - 1)/12)
}' |
winclip -c
The output was of the following form:
WP0 Project Management 744ed 1/1/2000
WP1 Requirements Analysis 124ed 1/1/2000
WP3 Metalevel Specification 279ed 1/4/2000
...

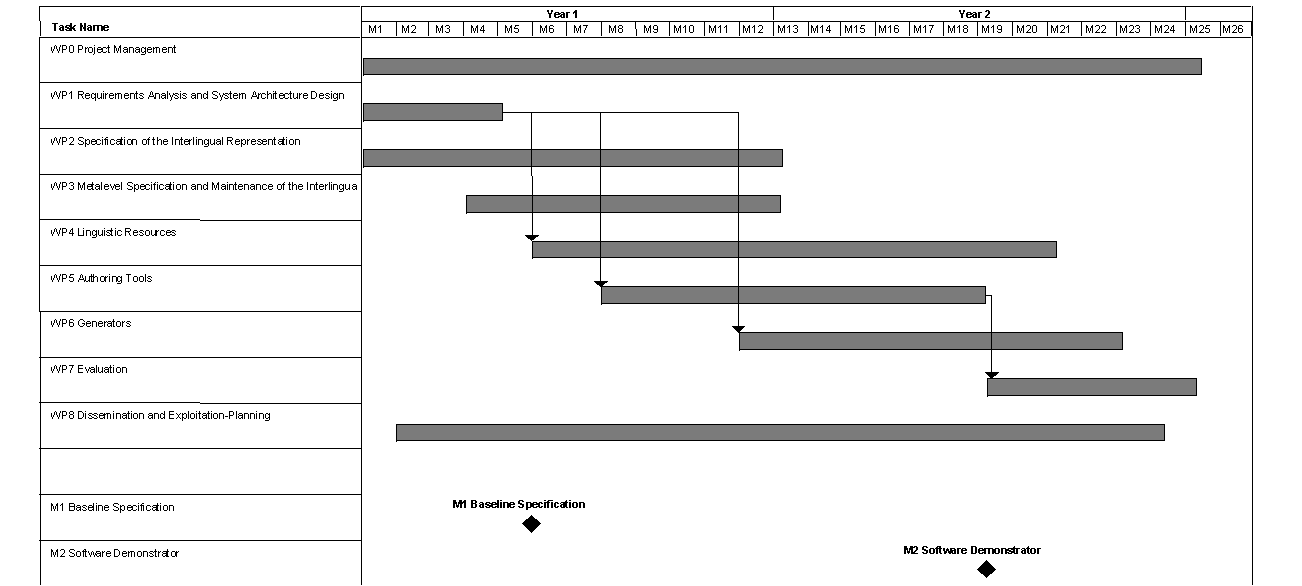

The resulting GANTT chart is depicted in Figure 3.
Our wux port of Unix tools to the 16 bit Windows environment [Spi94] demonstrated the possibility of implementing true multitasked processing of pipeline command sequences under the Windows environment, but did not offer any additional integration facilities.
The UWIN port [Kor97] of the Unix tools and libraries supports all X/Open Release 4 headers, interfaces, and commands. It supports the shell namespace links (shortcuts) by mapping them internally to Unix symbolic links. It is interesting to note that UWIN resolves links by reverse engineering the OLE link file format rather than calling the corresponding Win32 API functions. UWIN provides access to the clipboard via the /dev/clipboard device and to the Windows registry via a virtual file system that is mounted at /reg. Both facilities are however only available to programs that have been compiled under the UWIN environment. As a result, native operating system console commands (e.g. dir) and commands that have been compiled without using the UWIN libraries can not directly access the clipboard and the registry. On the contrary, outwit tools provide clipboard and registry access to all character-based console programs, including 16-bit legacy applications.
Cygwin [Noe98] is a full Win32 porting layer for Unix applications. It supports the GNU development tools and allows the effortless port of many Unix programs by supporting almost all POSIX.1/90 calls and other Unix version-specific functionality. A novel integration aspect of cygwin is the provision of the /dev/windows pseudo-device which can be used as a source for Windows messages (user input from the keyboard, the mouse, and IPC events).
Finally, OpenNt [Wal97] is a complete porting and runtime environment that can be used to migrate application source, developed on traditional Unix systems, directly to Windows NT. Ported software includes many X11R5 clients and over 200 other utilities. It is implemented using an enhanced Windows NT POSIX subsystem. As the POSIX subsystem is isolated from the Win32 subsystem, integration between the two worlds is offered through the filesystem, the desktop, a special function to execute Win32 applications, and socket-based IPC.
A number of technologies support high-level programming in the Windows environment. These include languages such as Visual Basic [Boc99], Perl [WCSP96], and TCL/TK [Ous94], and integration mechanisms such as OLE automation and Windows scripting. These approaches, based on a programming language, are superior for programming in the large and developing applications in a top down manner. Tool-based approaches such as the one we advocate complement such an environment offering a different development path. As tools are directly used from the shell command line in a casual user interaction pattern repetitive tasks are gradually automated as shell scripts and subsequently, as they mature, packaged as applications. We believe that this bottom-up evolutionary style of development should be available together with other approaches.
Many Windows applications expose an object model of the data and operations they support. Environments such as Visual Basic and language extensions such as the Perl OLE module allow programmers to access and manipulate Windows applications and their data from external programs. Although we feel that shell-based programming can not compete against environments tailored to support this mode of programming, a simple text-based command to access OLE automation objects could prove a valuable addition to our outwit suite. On the same front, but from a different angle, we are examining how Unix tools can be repackaged as OLE components to be used within visual programming environments [Spi99].
One final dimension of work that will increase the applicability of outwit concerns internationalization. All Win32 API functions dealing with strings are provided in 8-bit character and Unicode (wide character) versions. Although low-end Windows systems such as Windows 95/98 are not supporting Unicode for most of the API functions, Windows NT and Windows 2000 provide full Unicode support. As a result, the clipboard, filenames, registry keys, and databases may contain the full repertoire of Unicode characters. Currently outwit is coded and compiled as an 8-bit character application. Following the lead established by the Plan 9 internationalization efforts [PT93] a reasonable approach would be to adapt all outwit tools to use a multibyte (e.g. UTF-8) representation for their textual input and output. This approach would work with many existing Unix tools; we expect programs that explicitly deal with characters and will need to be modified (e.g. grep, sort, sed, and tr) to follow a similar approach.
In the previous paragraphs we demonstrated that the rise of GUI-based environments does not mean that tool building and Unix shell programming are less relevant today than they were 25 years ago. The lack of support for tool-based programming in the Windows environment is a result of market dynamics rather than an inherent limitation of the environment. Integrated GUI-based systems are probably the only applications that can be marketed and sold at a profit. However, modest effort invested in tool building will produce tools that can be used as building blocks in concert with the large number of existing Unix tools and the powerful shells.
http://www.spinellis.gr/sw/outwit
