Function Elements

Every function (C function or function like macro) is associated with a page like the following.

Function: format (C function) Details Associated identifier(s): [format] Declared in file C:\dds\src\Research\cscout\example\awk\proto.h line 166 (and possibly in other places) — marked source — edit Defined in file C:\dds\src\Research\cscout\example\awk\run.c line 793 — edit Calls directly 14 functions Explore directly called functions List of all called functions Call graph of all called functions Called directly by 2 functions Explore direct callers List of all callers Call graph of all callers Call graph of all calling and called functions (function in context) Refactor arguments into: Metrics Metric Value Number of characters 3237 Number of comment characters 204 Number of space characters 767 Number of line comments 0 Number of block comments 7 Number of lines 133 Maximum number of characters in a line 95 Number of character strings 15 Number of unprocessed lines 0 Number of C preprocessor directives 0 Number of processed C preprocessor conditionals (ifdef, if, elif) 0 Number of defined C preprocessor function-like macros 0 Number of defined C preprocessor object-like macros 0 Number of preprocessed tokens 962 Number of compiled tokens 1012 Number of statements or declarations 113 Number of operators 176 Number of unique operators 15 Number of numeric constants 22 Number of character literals 43 Number of if statements 17 Number of else clauses 2 Number of switch statements 2 Number of case labels 19 Number of default labels 2 Number of break statements 14 Number of for statements 2 Number of while statements 1 Number of do statements 0 Number of continue statements 2 Number of goto statements 0 Number of return statements 1 Number of project-scope identifiers 53 Number of file-scope (static) identifiers 2 Number of macro identifiers 9 Total number of object and object-like identifiers 259 Number of unique project-scope identifiers 12 Number of unique file-scope (static) identifiers 2 Number of unique macro identifiers 5 Number of unique object and object-like identifiers 34 Number of global namespace occupants at function's top 1063 Number of parameters 4 Maximum level of statement nesting 4 Number of goto labels 0 Fan-in (number of calling functions) 2 Fan-out (number of called functions) 14 Cyclomatic complexity (control statements) 23 Extended cyclomatic complexity (includes branching operators) 27 Maximum cyclomatic complexity (includes branching operators and all switch branches) 44 Structure complexity (Henry and Kafura) 784 Halstead complexity 3416.45 Information flow metric (Henry and Selig) 18032 Main page — Web: Home Manual CScout

From this page you can refactor the function's arguments (more on this in the next section) and obtain the following data.

• The identifier or identifiers composing the function name. These can be modified (from the corresponding identifier page) to change the function's name.
• The function's declaration. This may be an implicit declaration (the location of its first use). CScout only maintains the location of one declaration for each function. You can locate additional points of declaration by looking at the places where the corresponding identifier is used. The "marked source" link allows you to see the declaration as a hyperlink in the file where it occurs. In many browsers pressing the tab key on that page will lead you directly to the function's declaration.
• The function's definition (if a definition was found). Library functions obviously will not have a definition associated with them.
• The number of functions this function directly calls. These are the functions (C functions and function-like macros) that appear inside the function's body.

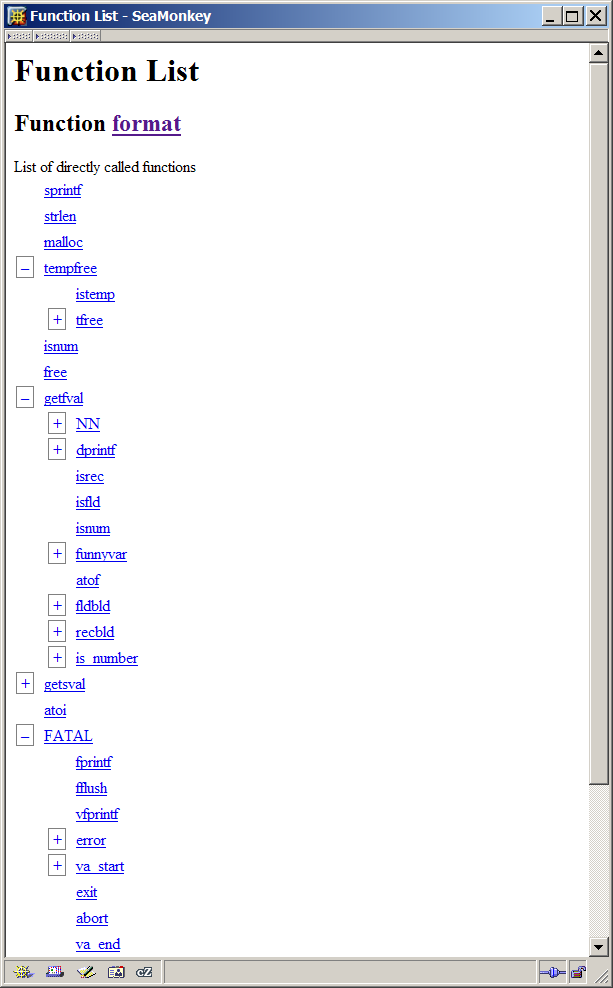

• A list allowing you to explore interactively the tree of called functions. The tree will appear in the following form:

  Each plus or minus box will open or close the list of called functions. Each function name is a hyperlink to the corresponding function page.
• A list of all called functions. This list includes all functions that can be called, starting from the function we are examining. On the right of each function is a hyperlink to a call graph of the path(s) leading from the function being examined to the function listed.
• A call graph of all called functions (explained in a following section).
• A page allowing you to explore interactively all callers. These are the functions that directly call the function we are examining. The functionality of this page is the same as that of the one for exploring the called functions.
• A list of all callers. These are all functions that can directly or indirectly call the function we are examining.
• A call graph of all callers (explained in a following section).
• A call graph of all the function's callers and called functions showing the function in context (explained in a following section).
• A comprehensive set of metrics regarding the function (only for defined functions and macros).

All Functions

The all functions page will list all the functions (C functions and function-like macros) defined or declared in the CScout workspace. In moderately sized projects, you can use it as a starting point for jumping to a function; in larger projects it is probably useful only as a last resort.

Project-scoped writable functions

This page contains all the writable functions that are globaly visible. The page does not list function-like macros.

File-scoped writable functions

This page contains all the writable functions that are visible only within the context of a single file. This include C functions declared as static, and function-like macros.

Writable functions that are not directly called

This page will list all writable functions that are never directly called. The most probable cause is that the corresponding functions are called through a pointer, but some may be historic leftovers - candidates for removal.

Writable functions that are called exactly once

Functions that are called exactly once may be candidates for inlining.
