Component Mining: A Process and its Pattern Language
Diomidis Spinellis and Konstantinos Raptis
Department of Information and Communication Systems
University of the Aegean
Greece
email: dspin@aegean.gr
Abstract
An important issue in a component-based software development process
is the supply source of mature, reliable, adaptable, and maintainable
components.
We define as component mining the deliberate, organised, and
automated process of extracting reusable components from an existing
rich software base and
present a pattern language used for
mining components from programs that are typically executed as
non-interactive autonomous processes.
We describe the patters in terms of intent, motivation, applicability,
structure, participants, consequences, and implementation.
Based on the pattern language, we describe the implementation of a set of
COM components that encapsulate the Unix filters and an exemplar
application that uses them.
Keywords
Component mining, pattern language, Unix tools, reuse.
1 Introduction
The increasing adoption of the object-oriented paradigm in
conjunction with recognised shortfalls of ``pure'' object-oriented
development [6] and
recent technology advances such as Enterprise JavaBeans and ActiveX have
generated renewed interest in component-based software engineering [4].
Object-oriented design and implementation allows the composition of systems
using pre-packaged software components [15] while technologies such as
CORBA, ActiveX, and JavaBeans
provide the necessary framework for constructing such systems.
A component can be defined as ``a physical and replaceable part of a system
that conforms to and provides the realisation of a set of interfaces''
[2].
More concretely,
a software component can be defined as a unit of composition
with contractually specified interfaces and explicit context dependencies only;
it can be deployed independently and is subject
to third-party composition [22].
Components, in common with objects,
encapsulate state,
allow access to it through separately described interfaces, and
support modular design based on separation of concerns.
However, components differ from objects in a number of ways:
they can be implemented in different languages,
they are often packaged in binary containers,
they can encapsulate multiple objects, and
are typically more robustly packaged than objects [24].
An important issue in a component-based software development process
is the supply-source of mature, reliable, adaptable, and maintainable
components.
We define as component mining the deliberate, organised, and
automated process of extracting reusable components from an existing
component-rich software base.
Component mining is a product and process reuse activity [14]
that relies on the exploration and exploitation of large pre-existing
component-rich fields [20].
Effective component mining is supported by
a clearly defined, and possibly automated, process for identifying
and packaging the software components.
The remainder of this paper is structured as follows:
in section 2 we describe our mining field which consists
of mature, filter-style programs available as open source in many
Unix implementations;
in section 3
we present a pattern language [1] used for
mining components from programs that are typically executed as
non-interactive autonomous processes, and
in section 4 we provide a case study on how the components were
implemented using a partly automated process.
Section 5 concludes the paper with a brief evaluation
of our approach and our plans for further work.
The pipe and filter model and
component-based software engineering is not a new idea; see for
example [19,13] (discussing pipe and filter architectures),
[15,6,22] (discussing component-based development)
and the references therein.
The main contributions of this paper are
the description of component mining using a pattern language,
the proposal to repackage Unix filter-style programs as components,
and the presentation of a partly-automated mining process
based on a domain-specific language.
2 The Mining Field
The mining field and at the same time our motivation source for defining the
patterns we describe consists of the numerous user and system programs
available
under the Unix operating system implementations.
Based on the Unix tool-centred philosophy software developers have
created a large collection of programs that provide a single service
(e.g. compare two files, search for a pattern, deliver mail) without
requiring user interaction.
Many of those programs are implemented using state-of-the-art algorithms,
have been stress-tested in many diverse applications for decades,
and have their interface and operation standardised under efforts such as
POSIX[10].
In addition, many of these programs are freely available in source code form
through Open Source initiatives such as GNU and BSD.
In fact, many of the social processes that have contributed to the success of
mathematical theorems as a scientific communication vehicle [8]
apply to this class of programs.
Many of these programs have been:
- documented, published, and reviewed in source code form,
- discussed, internalised, generalised, and paraphrased, and
- used for solving real problems often in conjunction with other programs.
The above factors are responsible for the creation of a rich base of mature,
reliable, standardised, and maintainable component candidates.
One can argue that these programs have always been used as components
connected together using one of the Unix shells.
Although this statement is in a weak sense true, current technological trends
call for a component model a lot richer than the one provided by the Unix shell.
Systems using ActiveX or JavaBeans components
are based on object-oriented programming languages,
can provide a variety of efficient component composition approaches [25],
are often integrated with GUI environments,
and are supported by modern program development environments.
In contrast, the Unix shells
lack facilities for programming in the large,
support only the serial pipe composition model,
are designed for character-based terminals,
do not provide compilation support,
and offer only rudimentary debugging facilities.
Therefore, a process for packaging existing programs as object components
can elevate the individual reuse of specific algorithms or implementations
into an organised component mining operation.
3 The Process and its Pattern Language

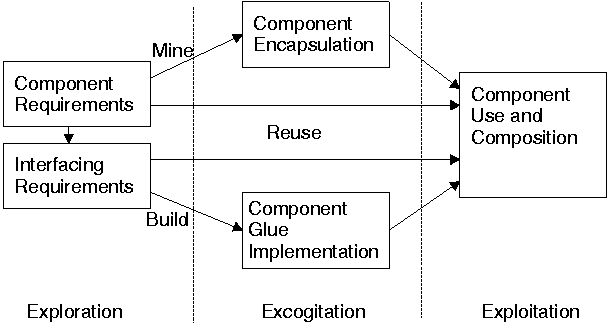

Figure 1:
The component mining and exploitation process.
Given a set of component requirements and their resulting interfacing
requirements,
the process of component mining and subsequent use within an application
domain is functionally and temporally divided into the three phases
illustrated in Figure 1.
These phases roughly correspond to the selection, specialisation,
and integration dimensions of typical software reuse
methodologies [12].
During the exploration phase component requirements are
elicited, and components are selected based on the existing
component abstractions of the mining field.
In addition,
the selected components and the system architecture determine the
corresponding interfacing requirements.
The excogitation phase deals with the encapsulation of the
components that have to be mined, and the implementation of suitable
connectors for joining the components together and glue for
interfacing components with the rest of the system.
The abstract nature of packaged components and interfaces means that
many of them can be stored in a repository for future reuse, or retrieved
from this repository for direct reuse.
Finally, during the exploitation phase the reused and newly
encapsulated components and corresponding interfaces are
used to create a functioning system.
The three activities that form the excogitation and exploitation phases
concern the design and implementation of concrete artefacts.
These activities are:
- Component encapsulation
- An existing standalone program is converted
into a component object.
- Glue and connector implementation
-
Special-purpose glue components provide a uniform and reusable interfacing
mechanism between the mined components and the rest of the system.
In addition, connectors may need to be built to interface the
mined components with each other [6].
- Component use and composition
- Component objects are combined to form new
structures and components.
These activities are essentially solutions to problems occurring repeatedly
in the context of component mining.
By giving each activity a concrete name,
describing the problem it addresses and its context,
outlining the solution's elements and relationships,
and analysing the activity's consequences
we are creating a pattern language of the component mining process.
It is therefore appropriate to describe these activities
by means of the three corresponding design patterns.
These patterns do not depend on the underlying component framework
or the mined programs and can therefore be used to integrate arbitrary
tool-type programs to object frameworks such as ActiveX, JavaBeans,
and CORBA.
In the following paragraphs we describe each pattern by roughly following the
format used Gamma et al [9].
Thus, for every pattern we:
- provide the name that will be used to
describe it in our component mining process vocabulary
and classify it as creational, behavioural, or structural,
- illustrate the design problem that provides our motivation to use the
pattern,
- outline the situations where that pattern can be applied,
- provide a graphic representation of the pattern's classes,
- list the classes and objects participating in the pattern,
- describe how the pattern supports its objectives, and
- provide prescriptive guidelines towards the pattern's
implementation.
3.1 Component Encapsulation - Creational
Intent
Component encapsulation creates a component object out of a standalone
non-interactive program.
Motivation
Encapsulating the multitude of powerful and mature standalone programs as
component objects makes them usable within modern object-based frameworks.
Applicability
All programs lacking mandatory user interaction can be encapsulated using
this pattern.
Particularly elegant is the encapsulation of filter style programs
which transform a data stream into another.
Programs requiring limited character-based user interaction can be encapsulated
using a suitable wrapper, while programs with a graphical front-end are
in most cases poor candidates for encapsulation.
Structure

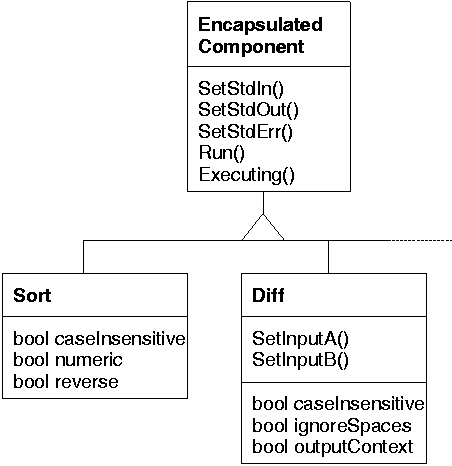

Figure 2:
Component encapsulation object diagram.
Encapsulated components process input data streams generating output streams
typically based on parameters that modify their behaviour.
As an example, the diff component (an encapsulated version of
the Unix command with the same name) processes two textual input streams
generating as output a third stream containing their differences.
Its parameters specify inter alia the handling of white space,
the output format, and the algorithm to use.
As shown in Figure 2 every encapsulated component provides
a set of standard methods.
These methods specify the component's interconnection.
The SetStd*() methods are used to set the component's input and output
streams.
In addition, most components will offer component-specific instance methods and
variables to specify particular program options such as the recipient of
a mail message for a mail transfer agent, or the collating sequence
order for a sorting component.
In order to maximise the component composition flexibility, parameters
that are associated with files in the original programs can be changed to
methods used to specify streams in the encapsulated component.
These can then be arbitrarily and efficiently connected to a variety
of data sources and sinks.
Once all component parameters are set the component's
Run() method is called to
specify that its operation can commence.
Since most components execute asynchronously, they provide the
Executing() method to allow a program to wait until a component's
operation has completed.
Participants
Encapsulated components are typically connected with the rest of the
program and other components using glue component objects.
Consequences
The encapsulation of a stand-alone program as a component makes it directly
usable in modern object-based frameworks.
The specification of a standard component class allows repetitive aspects
of the encapsulation to be reused and can even be used to automate
the encapsulation;
at the cost of having a generic component interface.
In addition,
the generic specification of data sources and sinks as streams allows the
composition of encapsulated components using sophisticated topologies that
can not be typically implemented using the Unix shells.
Furthermore, the component encapsulation allows the system implementor
to experiment with different component implementations which may
vary in terms of performance, cost, licensing restrictions, and resource usage.
Implementations
A large number of implementation possibilities spans varying levels of
implementation cost and efficiency.
Components implemented as separate system processes using a wrapper approach
offer a quick way to prototype this approach at a cost
of reduced efficiency.
Thread-based implementations conforming with a component framework's
structuring conventions offer increased efficiency at a higher implementation
cost.
A thread-based implementation can advantageously use wrapper libraries to
transform existing operating system call primitives to interfaces to the
encapsulation code.
Finally,
hypermedia technologies can be used to integrate a component's documentation
with its encapsulated implementation [7].
3.2 Glue and Connector Implementation - Behavioural
Intent
Glue is used to interface components with the rest of the
system while Connectors are used to interface components with each other.
Motivation
The primary data flow mechanism of all components is a stream.
Apart from singular options controlling an encapsulated component's
operation the bulk of the data is transferred to and from the component
through streams.
Typical streams are formed from the standalone program's standard input
and output as well as any other user-specified files.
To use a component effectively these streams need to be connected to
existing data sources and sinks such as in-memory data
structures, files, relational databases, procedures producing dynamic data,
GUI widgets, and other components.
These connections are handled by the glue components.
Applicability
A glue component class needs to be designed
whenever a new type of an existing data source or sink needs to be linked
to an encapsulated component.
In addition, component connectors are used to provide functionality for
linking components together
and for providing additional features such as the scattering or gathering
of multiple data streams.
Structure

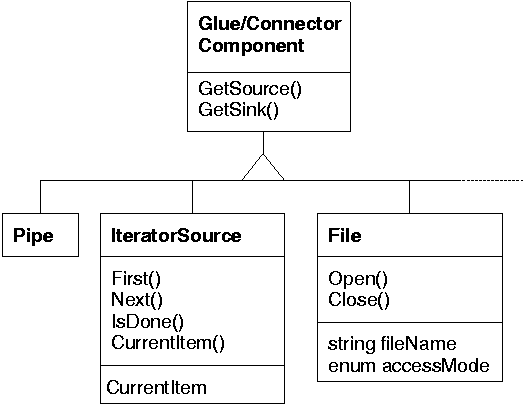

Figure 3:
Component glue object diagram.
As shown in Figure 3, glue components typically offer
source and sink data streams.
The streams they return can be used as arguments to a component's SetStd*
methods to connect a component to a specific stream.
The glue component classes offer additional class-specific methods and variables
to specify for example
the connection attributes and SQL string for a database source or
the methods for accessing iterator-based data structures.
Most glue components act either as data sources or as data sinks.
The pipe connector component provides both a source and a sink stream.
Data written to the sink stream appears on the source stream; pipes are
typically used to link together different components.
Participants
Glue components connect encapsulated components
with the rest of the system while connectors are used to interface
components of the same family between them.
Consequences
The provision of glue components allows the deep integration of encapsulated
components within an object-based framework.
Suitable glue components can be used to provide clear and efficient interfaces
to system data obviating the cumbersome file-based approaches typically
used to interface standalone programs.
The existence of glue components allows the designer to experiment
with different data sources and sinks without having to modify the
rest of the system structure.
Implementations
Although straightforward,
the implementation of connectors and glue components is intimately bound
to the implementation technique used for the corresponding encapsulated
components.
Process-based encapsulation techniques dictate the implementation of
streams and glue components using file descriptors, pipes,
and filesystem-visible file descriptors.
On the other hand, thread-based encapsulation implementations direct towards
connectors and glue components based on a shared-buffer producer-consumer model.
3.3 Component Composition - Structural
Intent
The component composition pattern identifies the primary methods of
encapsulated component composition and integration.
Motivation
Encapsulated components do not operate in a vacuum.
They are composed to create more powerful components and integrated
within an object-based system to provide specialised services.
Moreover, composition of encapsulated components with component glue
can be used to provide
efficient access to off-line data,
graphical user interfaces,
and a multitude of other component-based services.
As an example a spelling checker can be easily constructed by composing
the translate, sort, unique, and common
components, while the gluing of a editbox and listbox components
can be used to provide a GUI front end.
Applicability
Many of the problems solved under the Unix programming environment using shell
programming constructs and pipelines can be transformed to component
composition structures.
Of particular relevance are sequences of filter type components,
where each one receives a data stream, performs some operations on it,
and forwards it to another filter to perform some other operations.
Examples include pipelines of tools that process
text,
images,
sound, and
object code.
Meunier [13] describes a complete pattern language for a
``Pipes and Filters Architecture'' that can be used as a base to
structure applications.
Structure

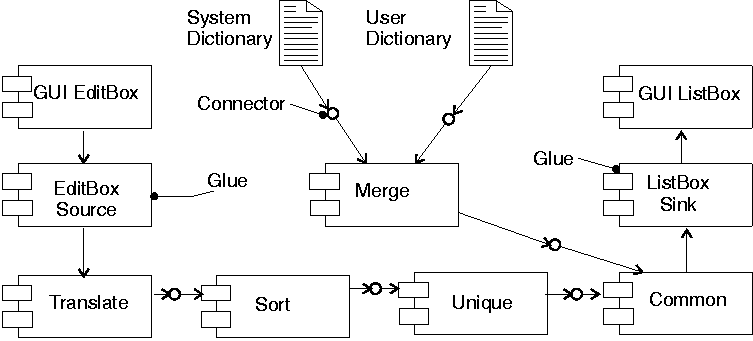

Figure 4:
A spell checker with a GUI.
Figure 4 depicts the component interaction diagram of
a filter-based spell checker built from Unix-mined and glue components.
The text to be spell-checked is retrieved from the GUI edit box
using a data source glue component.
It is transformed into a list of words using the translate
component which is a direct equivalent of the Unix tr command.
The word list is then transformed into a sorted list of unique words
using the sort and unique components which correspond to the
Unix sort and uniq commands.
At the same time, the system dictionary and a user dictionary are passed
using appropriate file connectors to the merge component
which merges two sorted streams; the merge component is
a specialisation of sort which provides this functionality.
Finally, the two sorted streams of words to be spelled and
acceptable words are checked by common - derived from the
Unix comm command - which outputs a list of words contained
in the first stream and not contained in the second one.
This stream of misspelled words is sent using the ListBoxSink
glue component to a GUI list box.
It is important to note that the integration of GUI elements
using the same component object paradigm and the merging of two
data streams could not be implemented using the standard Unix
linear pipeline system.
Participants
The components composed are object instances of either active process
components that are connected to existing data sources and sinks,
or connector and glue components
(pipes and environment interfacing classes) that provide such sources and sinks.
Consequences
Using the component composition pattern it is possible to implement
sophisticated component interaction topologies.
In addition, it is possible to package together existing components to
provide new standard and reusable components.
Implementations
The implementation of the composition pattern is independent of the
component-framework used.
Most relevant decisions are taken when implementing the
encapsulation and the glue patterns.
Designs based on the composition pattern should be portable across
different component frameworks.
4 Case Study
We used the component mining process pattern language to prototype
the encapsulation of a number of Unix tools using the
object-oriented features of the Perl programming language [5].
Following this proof of concept demonstration we decided to implement
the components in a wider-used platform.
We thus implemented a number of key components using Microsoft's
OLE/COM technology [3] and used them from within Java
and Visual Basic applications.
In the following sections we
outline the key features of the technology platform we utilised,
describe the concrete framework we used for encapsulating components,
explain how we automated the repetitive parts of the mining process,
present an exemplar application we realised using the encapsulated
components, and
discuss interoperability issues.
4.1 Implementation Environment
The Microsoft Component Object Model (COM), our basis for
packaging the components, is a software architecture that allows applications
and systems to be built from binary components supplied by different
software vendors.
COM is the underlying architecture that forms
the foundation for higher-level software services, like those
provided by OLE - Microsoft's unified environment of
object-based services.
OLE services span various aspects of component
software, including compound documents, custom controls,
inter-application scripting, data transfer, and other software
interactions.
The basic features of COM include
the definition of an efficient binary standard for component interoperability,
programming language independence,
dynamic loading of components,
limited multiple platform support, and
mechanisms for component communication across process and network boundaries.
COM components are packages of compiled code that conform to the
model's conventions.
In COM, applications interact with each other and with the system
through collections of functions called interfaces.
A COM interface is an immutable, strongly-typed contract between
software components to provide a small but useful set of semantically related
operations (methods).
As an example, all OLE services (such as drag and drop) are simply
COM interfaces.
Clients interact with interfaces through pointers.
Access to the component's data (i.e. public object members) is only available
through interfaces.
All components support a base interface called IUnknown which, apart
from two reference counting methods, provides the QueryInterface
mechanism that allows clients
to dynamically discover whether or not an interface is supported by a component
and get the respective interface pointer.
For languages that do not support pointers COM defines automation,
an alternative way to access component methods through a standard late-binding
interface called IDispatch.
Automation-based component access is easier to program on the client
side (it does not require the setup of a C-compatible stack frame)
and is therefore widely used by text-based scripting languages such as
Visual Basic for Applications, Perl, and TCL/TK.
In addition, some languages (e.g. Perl, VBA) and language extensions
(e.g. Visual C++ 5.0, Visual Java) provide syntactic sugar for accessing
COM component ``properties'' exposed through a pair of
specially tagged propget/propput interfaces,
as public member variables.
COM interfaces are described using the Microsoft Interface Definition
Language (MIDL), a language loosely based on the OSF DCE IDL.
Implementing COM components from scratch in C++ is not trivial.
Every component, in addition to its custom functionality,
must support registration,
an interface for creating component instances called IClassFactory,
object creation,
reference counting,
the QueryInterface method, and, possibly,
dual interfaces for supporting its
use through C++ and automation-based scripting languages.
Fortunately,
these tasks are supported by the Microsoft Foundation Classes
(MFC), a large, monolithic application framework for programming in
Microsoft Windows, and
by the Active Template Library (ATL) a leaner set of
template-based classes that specifically target the development of
COM components.
We decided to implement the mined components using ATL.
By aggressively utilising C++ templates and multiple inheritance
ATL supports the development of COM components with brevity
and minimal runtime overhead.
A bare-bones ATL-based COM component can be implemented
in less than 100 lines; most of them automatically generated by a
``wizard''-type tool.
We therefore found ATL to be ideal for implementing the large number
of Unix-mined components and use as a basis to automate the task.
4.2 Encapsulation Framework
The Unix Filter Component (UFC framework we developed for
encapsulating the Unix-mined components consists of the following classes:
- UFCFile
- Implements a connector-type component that is used
for connecting
Unix filter-type components to disk-based files for input and output.
A UFCFile component can act as data source or a data sink.
- UFCIO
- Implements a glue-type component that
connects filter-type components
to Windows edit controls for GUI-based interaction.
A UFCIO component can act as data source getting input from
an edit box or as a data sink sending output to an edit box window.
- UFCPipe
- Implements a connector-type component providing a
data-source/data-sink pair for connecting filters among each other.
- UFCTee
- Implements a connector-type component for splitting the
output of a filter into two identical data streams to be connected to
other filters.
UFCTee must be connected to appropriate data-sources and sinks.
- FilterBase
- A base class (not a component) used to provide
basic filter-handling functionality.
It implements the filter invocation method,
member variables for setting the filter's standard input and output,
input/output redirection,
and a method for determining if a filter is still executing.
- UFCFilter
- As a subclass of FilterBase,
UFCFilter implements a generic filter-type component that
can be used to encapsulate filters for which specific components
have not been implemented.
The filter executable file and its parameters are all specified using
a CommandLine property.
UFCFilter components must be connected to appropriate data-sources
and sinks.
Filter components are typically executed as separate processes utilising
existing collections of Unix tools ported to Windows such as
UWIN [11] and Cygwin [16].
The UFCIO and UFCTee components support asynchronous
operation by running in separate threads within the context of the
application that uses them.
4.3 Process Automation
command "uniq"
options {
NumberOccurences:bool:-c:Prefix lines by the number of occurrences
PrintDuplicate:bool:-d:Only print duplicate lines
SkipFields:int:-f:Avoid comparing the N first fields
SkipChars:int:-s:Avoid comparing the N first characters
CheckChars:int:-w:Compare no more than N characters in lines
PrintUnique:bool:-u:Only print unique lines
}
Figure 5:
Description of the uniq command.
Based on the encapsulation framework,
and the FilterBase class in particular,
we defined a process and implemented support tools for
automating the mining of Unix filters as components.
Specifically, for every filter that is to be converted into a component,
one has to define the syntax and semantics of tool's
command-line options
using a small domain-specific language [21].
An example of this description for the uniq filter is depicted
in Figure 5.
For every filter command line option (e.g. -c) one specifies
a meaningful name that is to be used as the respective component property,
the option's type,
the respective code expected by the filter as a command-line argument,
and a descriptive text that appears for the given property in component
object browsers.
Figure 6:
Accessing the UFCuniq component within Visual Basic.
A small compiler, implemented in Perl [23], compiles the declarative
description of the filter interface into a C++ subclass of FilterBase
that implements the respective component (e.g. UFCuniq),
the header containing the class declaration, and
the associated MIDL interface definition.
The class contains a member variable for every filter command-line option,
methods for getting and setting the member variable value
(thus exposing the command-line option as a ``property'' of the component),
a method for initialising the properties to a known state, and a
method for executing the filter with a command line constructed dynamically
to match the values of the component's properties.
The component also inherits and exposes as properties the methods of
FilterBase, namely properties for setting the filter's standard
input and output, and a property for determining if a filter is still executing.
Using the automated component mining process we were able to define
new filter components at an average rate of four components an hour.
An example of how the methods and properties of the automatically
created UFCuniq component appear in the Visual Basic environment can be
seen in Figure 6.
Connector and glue-type components still need to be written by hand,
but the effort required to implement them is only a small part of the
effort that would be required to mine a large number of filter-style
programs without an automated process.
4.4 Exemplar Application

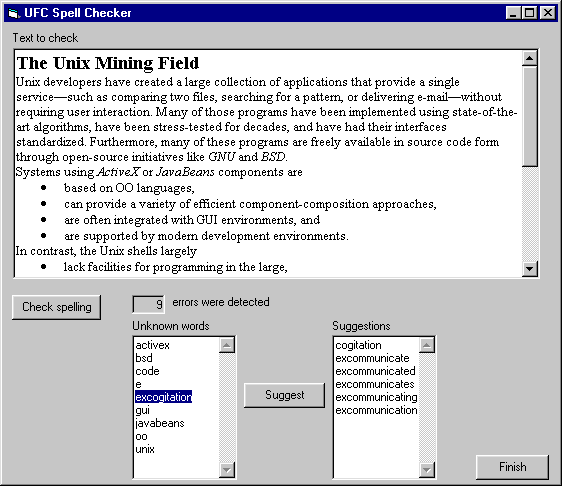

Figure 7:
A GUI-based spelling checker built using UFC.
We used UFC and the mined components to implement a simple
GUI-based spelling checker following the design outlined
in section 3.3.
The spelling checker was implemented in less than 100 lines of Visual Basic
code.
Its user-interface is depicted in Figure 7.
The spelling checker utilises the following UFC components:
UFCIO, UFCTee, UFCPipe, UFCtr, UFCsort, UFCuniq, UFCcomm,
and UFCwc.
Compared to a spelling checker implemented using a linear pipeline in the
Unix environment, our component-based implementation offers the following
enhancements:
- it provides a graphical user-interface,
- the errors detected can be interactively used to search for suggestions,
- it counts the number of errors detected utilising UFC's
ability to implement sophisticated non-linear pipeline topologies, and
- it can check formatted text.
In addition, the application was implemented using a
typed and modular language
in a rich integrated development environment offering
a syntax-aware editor,
a sophisticated debug facility,
a graphical interface builder,
integrated help facilities,
and source-code management.
Third-party tools also provide support for profiling,
automated source code examination, and
browsing facilities.
This level of support is sadly not existent in Unix-based shell-programming
approaches.
4.5 Interoperability
import ufcbase.*;
import java.io.*;
public class UFCSortClient {
public static void main(String args[]) {
IUFCFileDefault source = (IUFCFileDefault) new ufcbase.UFCFile();
IUFCFileDefault sink = (IUFCFileDefault) new ufcbase.UFCFile();
IUFCsortDefault sort = (IUFCsortDefault) new ufcbase.UFCsort();
source.Open(args[0] , 0);
sink.Open(args[1] , 1);
sort.putDataSource(source.getHandle());
sort.putDataSink(sink.getHandle());
sort.Run();
while(sort.getExecuting() != 0) {
;
}
source.Close();
sink.Close();
}
}
Figure 8:
Using UFC components in Java.
The mined components can be used from any language supporting COM such
as Visual C++, Visual Java, Delphi, Visual Basic, Perl, and TCL/TK.
As an example, we used the UFC components from Visual Java
by having the ``Java type library wizard'' provided by the
environment create a special .class file representing the COM
object.
We were then able to import the UFC methods and use them as specified.
An small example that sorts a file outputting the result in another file
is listed in Figure 8.
Two important interoperability problems are associated with our approach.
First of all, the resulting program violates the write-once, run-everywhere
concept of Java as it uses the Unix filter components which are
written in C and compiled for a particular processor architecture.
In addition, UFC relies on COM, a proprietary technology, that
is not universally available.
We were able to offer a partial solution to these problems by developing a
bridge that maps COM UFC objects into CORBA [17] objects.
The bridge exports the UFC components as CORBA objects
redirecting requests to the implementation of the respective COM
components.
Although the bridge is implemented in Visual J++, once it is installed
and running, any system, processor architecture, and language supporting
CORBA bindings can use UFC functionality.
The object request broker (ORB) we used,
ORBacus for C++ and Java by Object-Oriented Concepts,
currently supports C++ and Java.
In addition, OMG defines IDL language bindings for
C, Smalltalk, Ada, and COBOL.
5 Concluding Remarks
The component mining process proved to be addictive.
The ease of encapsulation,
the limitless possibilities of object structuring, and
the flexibility of using a high-level language to interact
with the components opened new ways to leverage existing tools and applications.
However,
the process for mining and using the components is not yet as smooth
and versatile as we would like.
In particular, the non-standard semantics of Unix command-line option
processing
means that a number of programs with an idiosyncratic interface can
not be automatically converted into components.
In addition, the asynchronous execution of components as separate
processes in conjunction with the new possibility to create
arbitrary component interaction graphs (and not just linear pipelines)
means that component users must carefully think about the issues of
synchronisation and deadlocks.
Finally, our component implementation -
which is based on components executing as separate processes -
may not be as efficient as components executing within the context of the
application that uses them.
We are currently
working on extending our component interface description domain-specific
language to describe more sophisticated tool command-line options,
experimenting with more efficient encapsulation
techniques using threads, and
planning to use our approach for constructing
image processing applications from encapsulated tools such as
the portable bitmap collection [18].
In the future we would like to see component mining extended to other
mining fields, probably supported by different pattern languages
applicable to the specific domains.
Acknowledgements
We would like to thank the anonymous referees for their
insightful comments on the previous version of this paper.
References
- [1]
-
Alexander C, Ishikawa S, Silverstein M, Jacobson M, Fiksdahl-King I, and Angel
S.
A Pattern Language.
(Oxford University Press, 1977).
- [2]
-
Booch G, Rumbaugh J, and Jacobson I.
The Unified Modeling Language User Guide.
(Addison-Wesley, 1999).
- [3]
-
Brockschmidt K.
Inside OLE.
(Microsoft Press, second edition, 1995), Redmond, Washington, USA.
- [4]
-
Brown A. W and Wallnau K. C.
The Current State of CBSE.
IEEE Software, 15(5):37-46, (September/October 1998).
- [5]
-
Conway D.
Object Oriented Perl.
(Manning Publications Co., 2000), Greenwich Ct, USA.
- [6]
-
D' Souza D and Wills A.
Objects, Components, and Frameworks With UML : The Catalysis
Approach.
(Addison-Wesley, 1998).
- [7]
-
da Silva M. F and Werner C. M. L.
Packaging Reusable Components Using Patterns and Hypermedia.
In Proceedings of The Fourth International Conference on
Software Reuse (ICSR '96). (IEEE, 1996).
- [8]
-
DeMillo R, Lipton R, and Perlis A.
Social Processes and Proofs of Theorems and Programs.
In Proc. Fourth ACM Symposium on Principles of Programming
Languages, pages 206-214, (Los Angeles, California, Jan. 1977. ACM).
- [9]
-
Gamma E, Helm R, Johnson R, and Vlissides J.
Design Patterns: Elements of Reusable Object-Oriented Software.
(Addison-Wesley, 1995).
- [10]
-
International Organization for Standardization, Geneva, Switzerland.
Information technology - Portable operating system interface
(POSIX) - Part 2: Shell and Utilities, 1993.
ISO/IEC 9945-2:1993 (IEEE/ANSI Std 1003.2-1992 & IEEE/ANSI
1003.2a-1992).
- [11]
-
Korn D. G.
Porting Unix to Windows NT.
In Proceedings of the USENIX 1997 Annual Technical
Conference, (Anaheim, CA, USA, Jan. 1997. Usenix Association).
- [12]
-
Krueger C. W.
Software Reuse.
ACM Comput. Surv., 24(2):131-183, (June 1992).
- [13]
-
Meunier R.
The Pipes and Filters Architecture.
In Coplien J. O and Schmidt D. C, editors, Pattern Languages of
Program Design, chapter 22, pages 427-440. (Addison-Wesley, 1995).
- [14]
-
Mili H, Mili F, and Mili A.
Reusing Software: Issues and Research Directions.
IEEE Trans. Softw. Eng., 21(6):528-562, (June 1995).
- [15]
-
Nierstrasz O, Gibbs S, and Tsichritzis D.
Component-Oriented Software Development.
Commun. ACM, 35(9):160-165, (Sept. 1992).
- [16]
-
Noer G. J.
Cygwin32: A Free Win32 Porting Layer for UNIX Applications.
In Proceedings of the 2nd USENIX Windows NT Symposium,
(Seattle, WA, USA, Aug. 1998. Usenix Association).
- [17]
-
Object Management Group .
The Common Object Request Broker: Architecture and Specification,
(Oct. 1999), Also available online http://www.omg.org/library. January 2000.
- [18]
-
Poskanzer J and others .
NETPBM: Extended Portable Bitmap Toolkit.
Available online ftp://ftp.x.org/contrib/utilities/, (Dec. 1993),
Release 7.
- [19]
-
Shaw M and Garlan D.
Software Architecture: Perspectives on an Emerging Discipline.
(Prentice Hall, 1996).
- [20]
-
Spinellis D.
Explore, Excogitate, Exploit: Component Mining.
IEEE Computer, 32(9):114-116, (Sept. 1999).
- [21]
-
Spinellis D and Guruprasad V.
Lightweight Languages as Software Engineering Tools.
In Ramming J. C, editor, USENIX Conference on Domain-Specific
Languages, pages 67-76, (Santa Monica, CA, USA, Oct. 1997. USENIX).
- [22]
-
Szyperski C.
Component Software: Behind Object-Oriented Programming.
(Addison-Wesley, 1998).
- [23]
-
Wall L and Schwartz R. L.
Programming Perl.
(O'Reilly and Associates, 1990), Sebastopol, CA, USA.
- [24]
-
Wills A.
Designing Component Kits and Architectures.
In Barroca L, Hall J, and Hall P, editors, Software
Architectures: Advances and Applications. (Springer Verlag, 1999).
- [25]
-
Yu H.
Using Object-Oriented Techniques to Develop Reusable Components.
In Proceedings of the conference on TRI-Ada '97, pages
117-124. (ACM, 1997).
Biographical Information
Diomidis Spinellis
is an assistant professor
at the Department of Information and Communication
Systems, University of the Aegean, Greece.
He holds an MEng in Software Engineering and a PhD
in Computer Science both from Imperial College (University of London, UK).
He is the author of more than 40 technical papers and conference presentations.
He has contributed software to the 4.4BSD Unix distribution,
the X-Windows system, and is the author of a number of public domain software
packages, libraries, and tools.
His research interests include
Software Engineering,
Programming Languages, and
Information Security.
Contact him at dspin@aegean.gr.
Konstantinos Raptis is a PhD student in the Department of Information
and Communication Systems at the University of the Aegean. His
research interests include distributed applications, software
component models and distributed component interoperation technologies.
Contact him at krap@aegean.gr.
